فیلم آموزش userman v 5.9 میکروتیک
دانلود قسمت اول
+ نوشته شده در شنبه نوزدهم آذر 1390ساعت 19:30 توسط سید محمد مرتضوی
|
X
مرکز خدمات و پشتیبانی انفورماتیک البرز

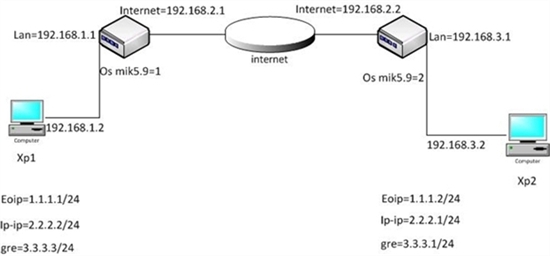

os mikrotik 5.9=1
interface gre add local-address=192.168.2.1/24 remote-address=192.168.2.2/24
interface eoip add local-address=192.168.2.1/24 remote-address=192.168.2.2/24
interface ipip add local-address=192.168.2.1/24 remote-address=192.168.2.2/24
ip address add address=3.3.3.3/24 interface=gre-tunnel
ip address add address=1.1.1.1/24 interface=eoip-tunnel
ip address add address=2.2.2.2/24 interface=ipip-tunnel
ip route add dst-address=192.168.3.0/24 gateway=3.3.3.1
ip route add dst-address=192.168.3.0/24 gateway=1.1.1.2
ip route add dst-address=192.168.3.0/24 gateway=2.2.2.1
os mikrotik 5.9=2
interface gre add local-address=192.168.2.2/24 remote-address=192.168.2.1/24
interface eoip add local-address=192.168.2.2/24 remote-address=192.168.2.1/24
interface ipip add local-address=192.168.2.2/24 remote-address=192.168.2.1/24
ip address add address=3.3.3.1/24 interface=gre-tunnel
ip address add address=1.1.1.2/24 interface=eoip-tunnel
ip address add address=2.2.2.1/24 interface=ipip-tunnel
ip route add dst-address=192.168.1.0/24 gateway=3.3.3.3
ip route add dst-address=192.168.1.0/24 gateway=1.1.1.1
ip route add dst-address=192.168.1.0/24 gateway=2.2.2.2
Certification
example test
1. How
many layers does Open Systems Interconnection model have? 12 6 7 5 9 2. If
ARP=reply-only is configured on an interface, what will this interface do Accept
all IP addresses listed in /ip arp as static entries Accept
all MAC-addresses listed in /ip arp as static entries Accept
all IP/MAC combinations listed in /ip arp as static entries Add
new MAC addresses in /ip arp list Add
new IP addresses in /ip arp list 3. How
many usable IP addresses are there in a 23-bit (255.255.254.0) subnet? 508 510 512 254 4. Select
valid MAC-address G2:60:CF:21:99:H0 AEC8:21F1:AA44:54FF:1111:DDAE:0212:1201 00:00:5E:80:EE:B0 192.168.0.0/16 5. What
is the default TTL (time to live) on a router that an IP packet can experience
before it will be discarded ? 30 60 1 64 6. How
many IP addresses can one find in the header of an IP packet? 1 4 2 3 7. Which
ones of the following are valid IP addresses? 192.168.256.1 192.168.13.255 1.27.14.254 10.10.14.0 8. If
ARP=reply-only is enabled on one router interface, router can add dynamic ARP
entries for the particular interface. True False 9. The
basic unit of a physical network (OSI Layer 1) is the: Byte Frame Header Bit 10. Which
of the following is NOT a valid MAC Address? 80:GF:AA:67:13:5D 13:16:86:53:89:43 95:B5:DD:EE:78:8A EA:BA:AA:EE:FF:CB 88:0C:00:99:5F:EF 11. What
protocol does ping use? ARP ICMP UDP TCP 12. Which
of the following IP addresses are publicly routable? 127.34.155.3 172.16.13.23 11.3.10.4 192.168.1.4 13. In
MikroTik RouterOS, Layer-3 communication between 2 hosts can be achieved by
using an address subnet of: /29 /32 /31 /30 14. Is
ARP used in the IPv6 protocol ?
15. Select
which of the following are 'Public IP addresses': 10.110.50.37 172.168.254.2 172.28.73.21 192.168.0.1 11.63.72.21 16. How
many usable IP addresses are there in a 20-bit subnet? 2048 4094 2046 2047 4096 17. A
PC with IP 192.168.1.2 can access internet, and static ARP has been set for
that IP address on gateway. When the PC Ethernet card failed, the user change
it with a new card and set the same IP for it. Another
IP has to be added for Internet access Nothing
- it will work as before Old
static ARP entry on gateway has to be updated for the new card MAC-address
of the new card has to be changed to MAC address of old card 18. The
network address is The
first address of the subnet The
first usable address of the subnet The
last address of the subnet 19. You
have a router with configuration IP:192.168.2.115/24
gateway: 192.168.2.1 IP:192.168.1.223/24
gateway:248.115.148.136 IP:192.168.0.1/24
gateway:192.168.2.1 IP:192.168.2.253/24
gateway:202.168.0.1 IP:192.168.2.2/24
gateway:202.168.125.45 20. Choose
all valid hosts address range for subnet 15.242.55.62/27 15.242.55.33-15.242.55.63 15.242.55.31-15.242.55.62 15.242.55.32-15.242.55.63 15.242.55.33-15.242.55.62
What else should be done?
- Public IP :202.168.125.45/24
- Default gateway:202.168.125.1
- DNS server: 248.115.148.136, 248.115.148.137
- Local IP: 192.168.2.1/24
Mark the correct configuration on client PC to access to the Internet
منبع سایت میکروتیک
نمونه
ip firewall nat add chain=dstnat dst-address=69.69.69.69 protocol=tcp dst-port=5900 action=dst-nat to-addresses=192.168.1.100 to-ports=5900
لازم به ذکر است که شما باید دو سایت مجزا داشته باشید
tool user-manager database> clear
برای بستن ف ی ل تر ش کن
ip firewall address-list
add address=65.49.0.0/17 comment="" disabled=no list=UltraSurfServers
add address=204.107.140.0/24 comment="" disabled=no list=UltraSurfServers
ip firewall mangle
add action=add-src-to-address-list address-list=UltraSurfUsers \
address-list-timeout=5m chain=prerouting comment=UltraSurfUsers disabled=\
no dst-address-list=UltraSurfServers dst-port=443 protocol=tcp
ip firewall filter
add action=drop chain=forward comment="Block UltraSurf" disabled=no dst-port=\
443 protocol=tcp src-address-list=UltraSurfUsers
برای nat کردن ftp بروی ftp server از این دستور استفاده می کنیم
ابتدا ftp میکروتیک را غیرفعال می کنیم
ip service disable ftp
ip firewall nat add chain=dstnat action=netmap to-addresses=192.168.1.11 to-ports=21
protocol=tcp src-address=0.0.0.0/0 dst-address=1.1.1.1 in-interface=outside dst-port=21
ip firewall nat add chain=dstnat action=netmap to-addresses=192.168.1.11 to-ports=20
protocol=tcp src-address=0.0.0.0/0 dst-address=1.1.1.1 in-interface=outside dst-port=20
